Building RESTful applications using the WSO2 platform

Someone taking a casual look at the WSO2 middleware platform might be forgiven for thinking this is exclusively about SOAP and WS-*. But there is in fact strong support for building RESTful applications with this platform using the JAX-RS framework library, and Prabath Siriwardena (one of WSO2's experts on Identity Management) has blogged about the recommended component architecture to achieve this. There is also a WSO2 workshop on this topic conducted by Asanka Abeysinghe, who has many years of experience on the customer side of the fence and understands both the vendor (technology) and customer perspectives. This workshop is on Dec 8th and should be worth attending for people living close to Palo Alto.

An interesting sidelight: In Practical SOA for the Solution Architect, I re-introduce the practitioner to SOA principles by talking about three core technology components - the Service Container, the Broker and the Process Coordinator. According to this view of SOA, a service can be exposed through any of these components and a service consumer will be none the wiser as to the nature of its implementation. In other words, the Practical SOA approach does not make any prescriptions about which component should be the consumer-facing one. All of them are equally valid candidates, and the only criterion for choosing one over the other is the nature of the service enablement mechanism (bespoke, brokered or orchestrated).

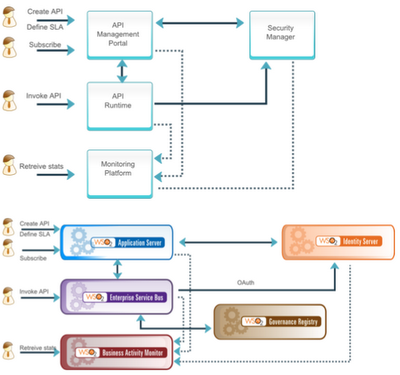

In Prabath's architecture diagram below, the reader will notice that runtime clients must all consume services through the ESB (the Broker), even though these services are hosted on the App Server (the Service Container). Why can't services be exposed directly from the App Server where they are hosted?

Prabath explains that using a Broker (ESB) instance as the front-end for services is recommended practice because the ESB can provide security features like authentication and authorisation, as well as throttling capabilities to guard against Denial of Service (DoS) attacks.

So in the real world, we may often need to front-end Service Containers and Process Coordinators with an instance of the Broker that is dedicated to providing these security and traffic shaping features. This could (and should!) be a different instance of the Broker from those used to mediate access to backend systems. Such an architecture will work well because ESBs are better deployed in a federated topology than in a centralised hub-and-spokes fashion. [The unnatural hub-and-spokes topology for ESB deployment, which the high cost of most commercial ESBs forces on customer organisations, then results in a performance bottleneck and a single point of failure. Fortunately, the more favourable economics of WSO2's Commercial Open Source model makes it feasible for customer organisations to implement a more flexible federated architecture for the ESB.]
